65,000.00฿ – 70,650.00฿
Combining Kawai’s authentic Responsive Hammer Compact II keyboard action and Progressive Harmonic Imaging sound technologies, with modern Bluetooth® connectivity and a powerful 40W speaker system, the superb ES520 delivers best-in-class touch and tone within a stylish, highly portable package for the home, studio, or stage.
At home, on stage, your music.
Combining Kawai’s authentic Responsive Hammer Compact II keyboard action and Progressive Harmonic Imaging sound technologies, with modern Bluetooth® connectivity and a powerful 40W speaker system, the superb ES520 delivers best-in-class touch and tone within a stylish, highly portable package for the home, studio, or stage.
The Kawai ES Series has been designed to deliver the finest playing experience possible within a portable piano. These stylish instruments are ideally suited to musicians seeking a piano that provides an authentic keyboard action and a selection of inspiring sounds, yet can still be moved easily, or placed on an attractive furniture stand without occupying too much space.
The latest ES Series models are also an excellent choice for gigging musicians, academic institutions, and places of worship, thanks to their lightweight body, powerful speaker systems, and great audio connectivity. And with a slew of customisable settings, Bluetooth MIDI and audio, and engaging apps, the ES Series instruments are also extremely personal pianos, that players of all ages and abilities can take pride in owning.
The ES520’s Responsive Hammer Compact II (RHCII) keyboard action has been developed to represent the distinctive touch of an acoustic grand piano. Based on the highly-regarded RH keyboard action design, its spring-less technology and sturdy construction delivers consistent upward and downward motion for a smooth, natural, and highly authentic piano playing experience.
Just as acoustic pianos utilise heavier bass hammers and lighter treble hammers, the RHCII keyboard action also employs different hammer weights, appropriately graded for each playing range.
Such details provide greater stability during fortissimo passages, while preserving delicate pianissimo control, to satisfy the demands of even the most discerning pianist.
The Responsive Hammer Compact II keyboard action utilises an accurate triple-sensor key detection system for enhanced playing realism.
The added third sensor improves responsiveness when playing the same key repeatedly, and unlike conventional two sensor keyboard actions found in most portable pianos, allows the sound of a single note to be gradually ‘layered’ without the previous tone being lost.
In addition, Kawai’s action technology also monitors the speed at which each key is lifted, influencing the release character of piano sounds, and providing a greater range of expression between staccato and legato playing.
Earning a reputation as the ‘premier pianos of Japan’, Shigeru Kawai instruments grace the stages of concert halls and musical institutions throughout the world, and are prized for their outstanding tonal clarity and exceptional dynamic range.
The ES520 captures the magnificent tone of the flagship Shigeru Kawai SK-EX concert grand piano. This peerless instrument is hand-built by Master Piano Artisans at the Shigeru Kawai Piano Research Laboratory in Ryuyo, Japan, and widely regarded as one of the finest instruments in its class.
In addition, the ES520 also features the distinctive sound of Kawai’s highly acclaimed EX concert grand piano, which has been selected by professional pianists in such prestigious events as the Chopin, Tchaikovsky, and Rubinstein international piano competitions, among others.
Both the SK-EX and EX are faithfully reproduced with full 88-key sampling using advanced Harmonic Imaging™ sound technology, to establish a new standard in digital piano tonal quality, and allow musicians to appreciate the contrasting properties of each.
The rich, expressive sound of the SK-EX and EX concert grand pianos is at the heart of the ES520, with all eighty-eight keys of these world-class instruments painstakingly recorded, meticulously analysed, and accurately reproduced as high-fidelity digital waveforms.
Recording each key individually in this way – as opposed to stretching the same tone over several different notes – preserves the grand pianos’ unique harmonic character, and guarantees that the sound heard when playing any one of the ES520’s weighted keys is a faithful representation of the original acoustic source.
When playing a fine piano, the amount of pressure applied to the keyboard affects not only the volume of the sound produced, but also the unique tonal character of each note. Therefore, in order to construct a realistic acoustic portrait of each grand piano, not only is each key recorded individually, but also at a wide variety of different volumes, ranging from gentle pianissimo to thunderous fortissimo.
The ES520 offers a highly detailed acoustic portrait, employing Kawai’s proprietary Progressive Harmonic Imaging sampling technology to ensure smooth tonal transitions across the keyboard and throughout the entire dynamic range.
Alongside the classically voiced SK-EX and EX grand piano sounds, the ES520 also showcases a selection of Jazz, Pop, and Modern variations suitable for a range of musical genres. A traditional Kawai upright piano sound is also included, for pieces that suggest a feeling of nostalgia, or call for a slightly more intimate tonal character.
The knowledge and skill of an experienced piano technician is essential to bring out the best of a fine acoustic piano. In addition to tuning each note, the technician also performs numerous regulation and voicing adjustments that allow the instrument to truly sing.
The ES520’s powerful Virtual Technician function simulates these refinements digitally, allowing discerning musicians to shape aspects of the selected piano’s character to suit their personal preferences.
Perform touch weight and voicing adjustments, regulate hammer and key release noises, and fine-tune string and damper resonances. It’s even possible to adjust the precise tuning, volume, and character of individual notes.
The ES520’s powerful digital effects engine enhances the instrument’s superior core sounds, applying additional layers of detail and realism that bring performances to life.
Tailor an instrument’s character and feeling with a range of studio quality chorus, tremolo, delay, and auto-pan effects. Add vintage warmth to electric pianos and trademark growl to drawbar organs using the dedicated Amp Sim speaker models.
Then adjust the instrument’s reverb controls to position yourself within one of six acoustic environments, ranging from a small practise room to an inspirational grand cathedral
Developed in collaboration with Onkyo, one of Japan’s leading premium audio equipment manufacturers, the ES520 features a redesigned motherboard, amplifier, and audio delivery system. These premium components combine to deliver best-in-class audio quality, producing an extremely rich, clear sound with minimal distortion.
The ES520 motherboard and sound hardware is engineered for precise signal conversion and optimum sound quality. Advanced low-noise circuit designs and premium audio components combine to ensure crystal clear, high-fidelity sound with minimal distortion.
The ES520’s impressive 40W output system utilises speaker box enclosures that deliver a rich, expansive sound to rival much larger console digital pianos. This design allows for a compact, portable instrument, capable of enthralling medium-sized audiences without the need for additional amplification.
Complementing the instrument’s authentic Responsive Hammer Compact II keyboard action and Progressive Harmonic Imaging grand piano sounds, the ES520 also offers a strong selection of digital piano features that further enhance one’s musical enjoyment.
Wireless Bluetooth® connectivity, USB memory load/save, Dual, Split, and Four Hands keyboard modes, and a rich assortment of instrumental voices are just some of the features accessible from the piano’s intuitive control panel and large OLED display.
In addition to standard USB and MIDI jacks for connecting to computers or other instruments, the ES520 also features integrated Bluetooth® MIDI and Audio technologies that allow the instrument to communicate with supported smart devices wirelessly.
Once paired with a phone, tablet, or laptop, ES520 owners can enjoy a wide variety of exciting music-related apps that enhance their learning and playing experience, or stream audio from songs and videos directly through the instrument’s powerful speaker system without the need to connect additional cables.
* Availability of Bluetooth® function may vary depending on market area.
* For more information please refer to the Bluetooth MIDI Information support page.
The latest ES520 is compatible with Kawai’s new PianoRemote control app for iOS and supported Android devices. This app connects to the piano wirelessly via the instrument’s integrated Bluetooth feature, providing an effortless way to change sounds or adjust settings from an attractive user interface.
The ES520 is equipped with modern USB connectors that not only allow the instrument to be connected to a computer for MIDI use, but also to load and save data to USB memory devices directly.
This latter USB to Device functionality allows favourite instrument settings, registrations, and memorable recorder songs stored within internal memory to be safely preserved on USB flash drives, or for standard MIDI files (SMF) downloaded from the internet to be played back and enjoyed using the instrument’s superb Progressive Harmonic Imaging sounds without additional hardware or cables.
Supplementing the beautiful acoustic piano voices, the ES520 also features a strong selection of additional sounds.
Vintage electric pianos, drawbar organs, and warm synth pads allow this portable piano to serve as a convenient gigging board, while church organs, strings, and graceful choir voices ensure that the versatile ES520 is equally at home in places of worship.
Furthermore, the Dual playing mode also allows two different sounds, such as grand piano and strings, to be layered together, while the Split and Four Hands modes divide the keyboard into two independent sections, with volume balances adjustable in real-time from the front panel.
The ES520’s Spatial Headphone Sound (SHS) technology enhances the depth and realism of the instrument’s sound when listening through headphones or earphones. The player can select one of three different acoustic presets that adjust the spatial positioning of the sound, while also helping to reduce auditory fatigue when using earphones or headphones for extended periods of time.
In addition, the ES520 also allows players to select a variety of headphone types (Open, Semi-open, Closed, In-Ear, Canal, etc.) for an optimised listening experience.
The ES520 adopts a brand new exterior design, utilising a molded unibody construction. Its smoothly rounded edges and clean lines complement the flat, uncluttered panel surface, with elegantly recessed buttons that depress with a satisfying click. Lightweight and portable, the ES520 weighs just 14.5 kg, yet possesses a stylish, professional quality that players can trust.
Available in a smooth, matte Black or matte White finish, the ES520’s clean design is appropriate for both traditional and contemporary spaces. And with matching designer stand and triple pedal options, the instrument can be easily transformed into an ultra-compact piano replacement for the lounge, studio, or bedroom.

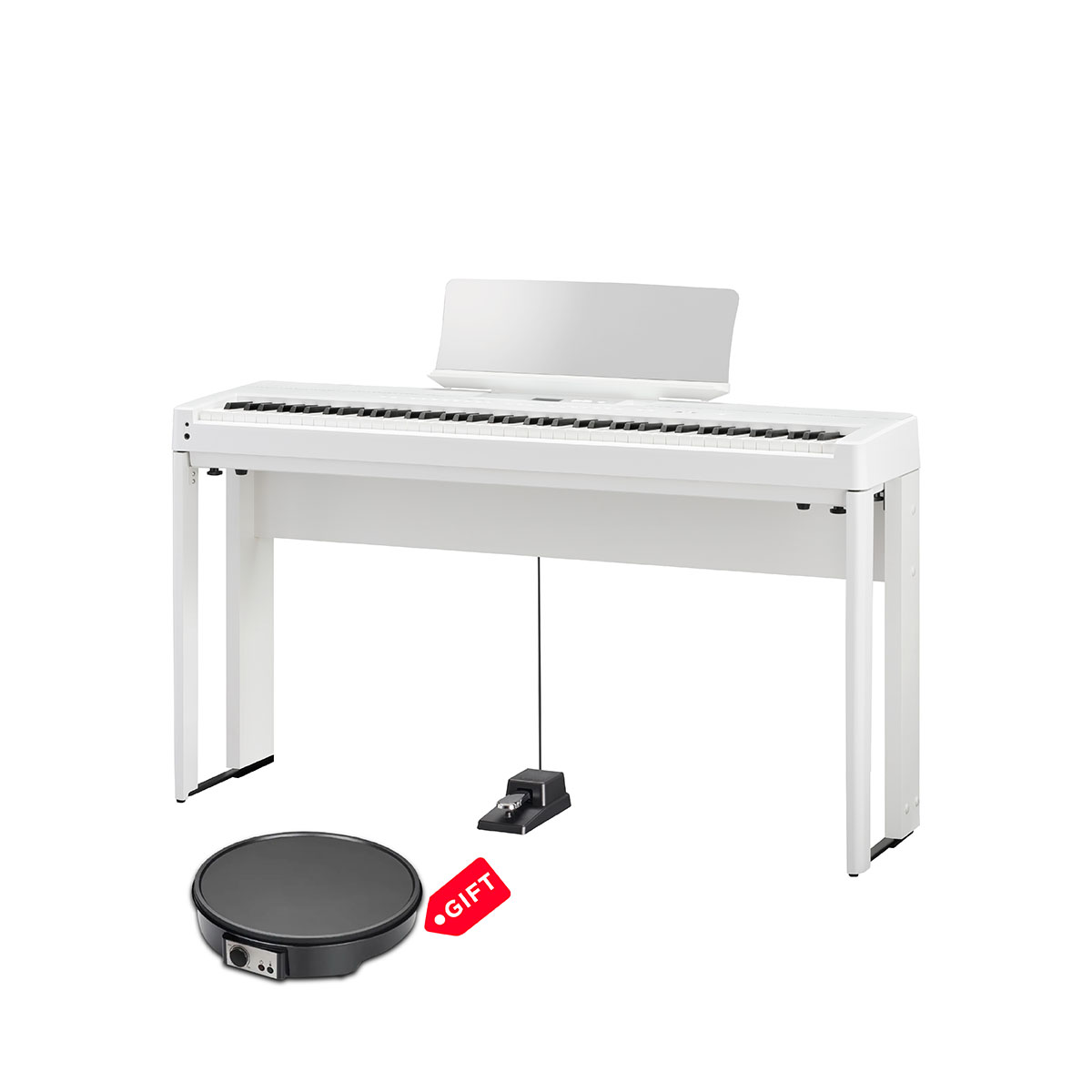

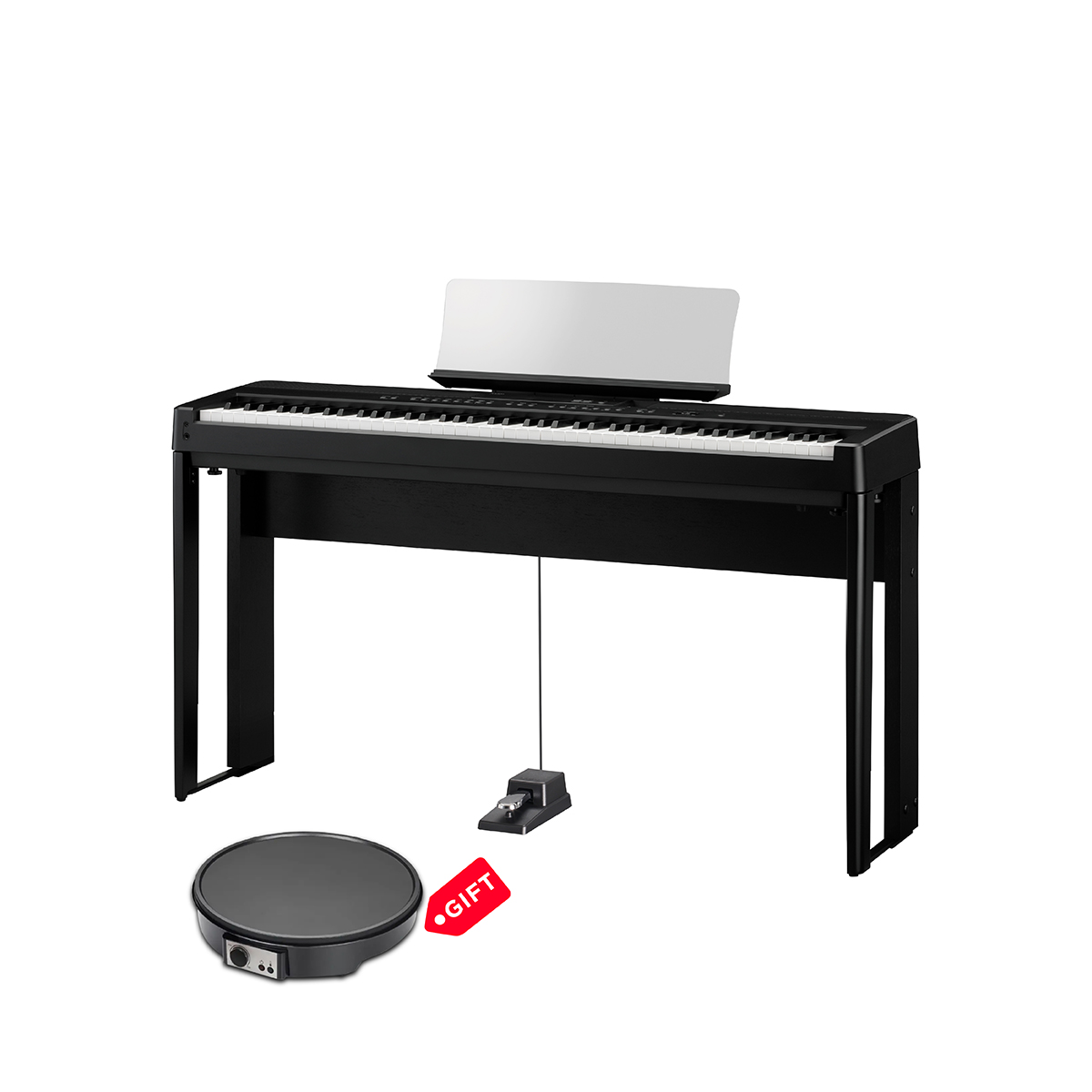

The HM-5 designer stand transforms the portable ES520 into ultra-compact, stylish piano replacement.
Crafted from wood and metal, this sturdy platform is the ideal solution for ES520 owners seeking a modern, attractive alternative to uninviting keyboard stands. The ES520 secures to the HM-5 stand using four manageable thumb screws, allowing the instrument to be easily decoupled and taken on the road.
* Available in matching Black or White finishes.
The F-302 Grand Feel pedal board attaches to the HM-5 stand to deliver a fully-fledged grand piano playing experience in an ultra-compact package.
As with Kawai’s large console instruments, the Grand Feel Pedal System replicates the individual weighting of the damper, soft, and sostenuto pedals of a Kawai SK-EX Concert grand piano, further enhancing the ES520’s impressive acoustic piano-like authenticity.
* Available in matching Black or White finishes.
* HM-5 designer stand also required.
For higher level performers, the GFP-3 triple pedal provides full damper, soft, and sostenuto pedal functionality within a sturdily built portable unit.
As with F-302 Grand Feel pedal board, the GFP-3 triple pedal also replicates the individual weighting of the damper, soft, and sostenuto pedals of a Kawai SK-EX Concert grand piano.
* Availability dependent on market location.
| Keyboard | ・ Responsive Hammer Compact II action - 88 keys - Grade-weighted hammers - Matte key surfaces - Triple sensor hammer detection | |
|---|---|---|
| Pedal | ・ F-10H pedal unit - Damper (with half-pedal support) | |
| Sound | ||
| Piano Sound | ・ Progressive Harmonic Imaging (PHI) - 88-key stereo sampling - SK-EX, EX recording - 192 note maximum polyphony | |
| Piano Resonance | – Damper Resonance – String Resonance | |
| Piano Adjustment | ・Virtual Technician (17 parameters) - Touch Curve (incl. User Touch Curve) - Voicing (incl. 88-key User Voicing) - Damper Resonance - Damper Noise - String Resonance - Key-off Effect - Fall-back Noise - Hammer Delay - Topboard - Decay Time - Minimum Touch - Stretch Tuning (incl. 88-key User Tuning) - Temperament (incl. User Temperament) - Temperament Key - Key Volume (incl. 88-key User Key Volume) - Half-Pedal Adjust - Soft Pedal Depth | |
| No. of Sounds | 34 voices | |
| Reverb | 6 types | |
| Brilliance | ✔ | |
| Other Effects | 16 types + amp simulator (3 types) | |
| Output System | ||
| Speakers | (8 x 12) cm x 2 | |
| Output Power | 40 W (20 W × 2) | |
| Headphone Enhancements | Spatial Headphone Sound Headphone Type | |
| Design | ||
| Display | 128 x 64 pixel OLED | |
| Key Cover | – | |
| Music Rest | Transparent, detachable type (included) | |
| Product Size & Weight | Width | 134 cm (52 3/4″) |
| Depth | 37.5 cm (14 3/4″) | |
| Height | 14.5 cm (5 3/4 “) [music rest detached] | |
| Net Weight | 14.5 kg (32 lbs.) | |
| Packing Size & Weight | Dimensions | 143 (W) x 45 (D) x 27.5 (H) cm |
| Gross Weight | 23 kg | |
| Available Finishes | Black (ES520B) White (ES520W) | |
| Functions | ||
| Basic Functions | Dual Split Four Hands Transpose Tuning Registration Startup Setting | |
| Internal Songs | Sound Demo | 23 sound demo songs |
| Piano Music | – | |
| Concert Magic | – | |
| Lesson Songs | – | |
| Internal Recorder | Total Memory | approximately 5,000 notes |
| No. of Songs | 3 songs | |
| Parts | 1 part | |
| Metronome | Time Signatures | 1/4, 2/4, 3/4, 4/4, 5/4, 3/8, 6/8 |
| Drum Rhythms | 100 patterns | |
| External Connectivity | ||
| Bluetooth * | Bluetooth (Ver. 4.1; GATT compatible) Bluetooth Low Energy MIDI Specification compliant Bluetooth Audio with aptX support | |
| USB Audio Recorder | Record/Playback | KSO [Kawai song format] SMF (Playback only) |
| Other Functions | – | |
| App Functions | PianoRemote (iOS/Android) PiaBookPlayer (iOS/Android) | |
| Connector Jacks | Headphone | 2 x 1/4″ Stereo jacks |
| MIDI | MIDI IN, MIDI OUT | |
| Line Out | 1/4″ L/MONO, R [unbalanced] | |
| Line In | 1/8″ Stereo [unbalanced] | |
| USB to Host | ✔ | |
| USB to Device | ✔ | |
| Others | Damper (for F-10H) Damper/Soft/Sostenuto (for F-302 or GFP-3) Speakers on/off switch | |
| Power Supply | ||
| Power Consumption | 18 W | |
| Included Accessories | ||
| Power | Power cable AC adaptor (PS-154) | |
| Bench | – | |
| Headphones | – | |
| Sheet Music | – | |
| Others | Warranty card * Owner’s manual Transparent music rest F-10H damper pedal (with half-pedal support) | |
| Weight | 14.5 kg |
|---|---|
| Dimensions | 37.5 × 134 × 14.5 cm |
| Keyboard | Responsive Hammer Compact II action, • 88 keys, • Grade-weighted hammers, • Matte key surfaces, • Triple sensor hammer detection |
| Pedals | • F-10H pedal unit, Damper (with half-pedal support) |
| Piano Sound | Progressive Harmonic Imaging (PHI), SK-EX; EX recording, • 88-key stereo sampling, 192 note maximum polyphony |
| Piano Resonance | • Damper Resonance, • String Resonance |
| Piano Adjustment | Virtual Technician (17 parameters), • Damper Noise, • Damper Resonance, • Decay Time, • Fall-back Noise, • Half-Pedal Adjust, • Hammer Delay, • Key Volume (incl. 88-key User Key Volume), • Key-off Effect, • Minimum Touch, • Soft Pedal Depth, • Stretch Tuning (incl. 88-key User Tuning), • String Resonance, • Temperament (incl. User Temperament), • Temperament Key, • Touch Curve (incl. User Touch Curve), • Voicing (incl. 88-key User Voicing), • Topboard |
| No. of Sounds | 34 voices |
| Reverb | 6 types |
| Brilliance | Yes |
| Other Effects | 16 types + amp simulator (3 types) |
| Speakers | (8 x 12) cm x 2 |
| Output Power | 40 W (20 W x 2) |
| Headphone Enhancements | Headphone Type, Spatial Headphone Sound |
| Display | 128 x 64 pixel OLED |
| Music Rest | detachable type (included), Transparent |
| Available Finishes | Black (ES520B), White (ES520W) |
| Basic Functions | Dual, Four Hands, Registration, Split, Startup Setting, Transpose, Tuning |
| Sound Demo | 23 sound demo songs |
| Total Memory | approximately 5,000 notes |
| No. of Songs | 3 songs |
| Parts | 1 part |
| Time Signatures | 1/4; 2/4; 3/4; 4/; 5/4; 3/8; 6/8 |
| Drum Rhythms | 100 patterns |
| Bluetooth * | Bluetooth (Ver. 4.1; GATT compatible), Bluetooth Audio with aptX support, Bluetooth Low Energy MIDI Specification compliant |
| Record/Playback | KSO [Kawai song format], SMF (Playback only) |
| App Functions | PiaBookPlayer (iOS/Android), PianoRemote (iOS/Android) |
| Headphone | 2 x 1/4" Stereo jacks |
| MIDI | MIDI IN, MIDI OUT |
| Line Out | 1/4" L/MONO; R [unbalanced] |
| Line In | 1 x 1/8" Stereo [unbalanced] |
| USB to Host | Yes |
| USB to Device | Yes |
| Others | Damper (for F-10H), Damper/Soft/Sostenuto (for F-302 or GFP-3), Speakers on/off switch |
| Power Consumption | 18 W |
| Power | AC adaptor (PS-154), Power cable |
| Accessories Others | F-10H damper pedal (with half-pedal support), Owner's Manual, Transparent music rest, Warranty Card * |
Digital Pianos
Answering the prayers of virtual piano musicians everywhere, the VPC1 packages the outstanding RM3 Grand II wooden-key action into a professional MIDI controller, with developer approved touch curves, flexible USB+MIDI routing, and a dedicated editor for Mac & PC.
CA series
Combining Kawai’s industry-leading Grand Feel III wooden-key keyboard action, brand new SK-EX Competition Grand sounds with multi-channel sampling and resonance modelling, premium audio processing and amplification technologies, and a powerful 6-speaker output system, the CA701 delivers grand piano playing authenticity at a competitive price.
Digital Pianos
The most authentic keyboard, the most realistic sound, and the most articulate control. While others may claim to be ‘the best’, only one can be considered the most genuine.
MP11SE: the stage piano for music professionals who do not accept compromise.
CA series

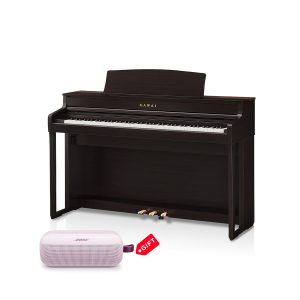

Combining the latest Grand Feel Compact wooden-key keyboard action and brand new SK-EX Competition Grand piano sounds, with powerful 360° speaker output, convenient USB audio features, Bluetooth® MIDI and Audio connectivity, and a strong selection of other sounds, the CA501 delivers best-in-class touch, tone, and features at an outstanding price.
CN series
Experience music, together.
Combining the acclaimed Responsive Hammer III keyboard action and stunning SK-EX, SK-5, and EX grand piano sounds, with a powerful 4 speaker delivery system, Bluetooth® MIDI and Audio connectivity, useful USB audio features, and support for the latest apps, the CN301 delivers impressive specifications at an unbeatable price.
Digital Pianos
A class-leading action, hundreds of great sounds, and superb real-time control. When it comes to outstanding live performance, there’s one board that guarantees success.
MP7SE: the flexible, all-in-one stage piano for flexible, play-it-all musicians.
KDP series

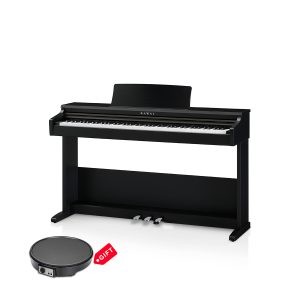

An impressive addition to Kawai’s digital piano line-up, the KDP75 features the Responsive Hammer Compact keyboard action, beautiful Shigeru Kawai SK-EX grand piano sounds, convenient USB connectivity, and support for the latest PianoRemote and PiaBookPlayer apps, delivering grand piano touch and tone at an affordable price.
